Core specifications

Graphics card model

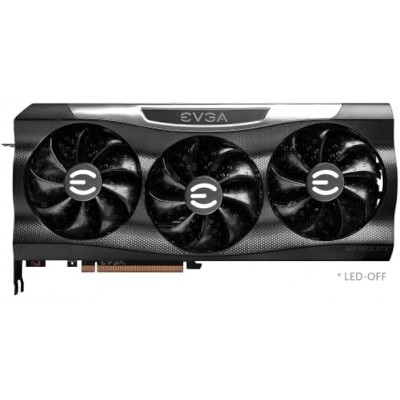

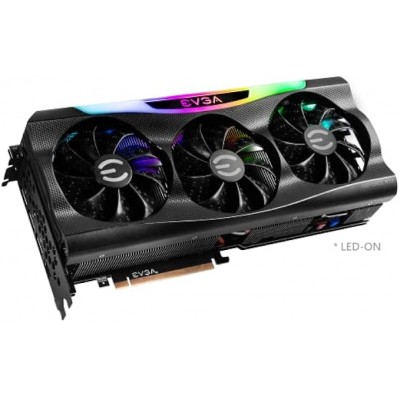

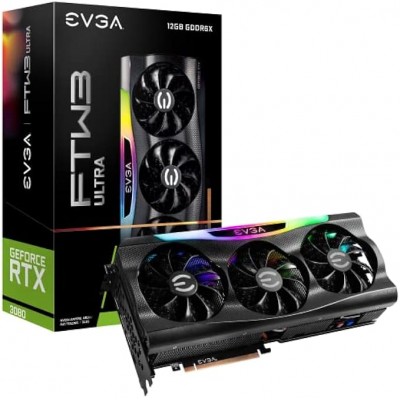

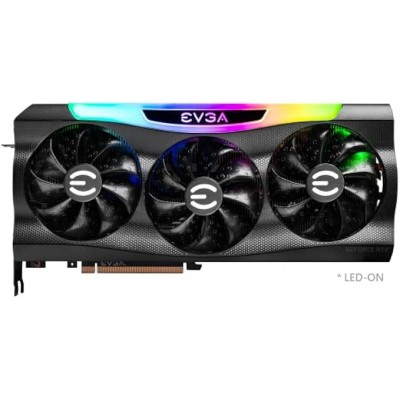

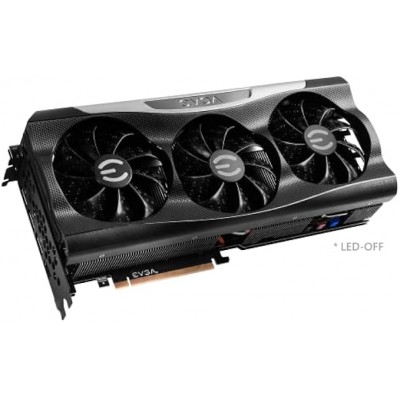

EVGA GeForce RTX 3080 12GB FTW3 Ultra Gaming

Model number: 12G-P5-4877-KL

Based on NVIDIA Ampere architecture, supports ray tracing and DLSS technology.

Memory and performance

12GB GDDR6X memory (384-bit bit width, bandwidth 912 GB/s).

CUDA cores: 8960 | Boost frequency: 1755 MHz (can be overclocked higher).

PCIe 4.0 x16 interface, supports Resizable BAR.

Cooling design

iCX3 cooling technology:

3 dual ball bearing fans (the middle fan rotates in reverse to reduce turbulence).

Fully covered copper bottom + 7 heat pipes (efficient heat conduction).

Independent temperature sensor monitors memory/power supply module.

ARGB LED: supports EVGA Precision X1 software custom lighting effects.

Power requirements

Recommended power supply: 850W (2×8Pin + 1×8Pin PCIe power supply required).

TDP: 350W (high-quality power supply recommended).
