Product Details

Model Compatibility:

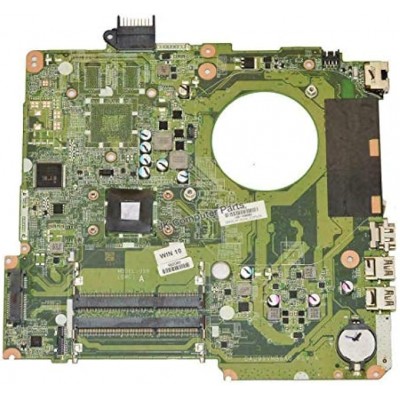

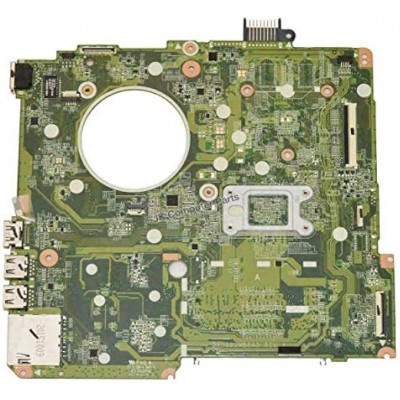

Motherboard Model: 846803-601, 846803-501, 846803-001 (same functions, may be regional or batch differences).

Applicable Models: Designed for HP 15-F387WM laptop (UMA version without independent graphics).

Core Configuration:

CPU: Onboard AMD A8-7410 APU (quad-core, 2.2GHz~2.5GHz, Radeon R5 integrated graphics).

Chipset: AMD Carrizo-L architecture.

Memory: Supports DDR3L SODIMM (up to 16GB, user-installed).

Storage: 1× SATA 3.0 interface (2.5-inch HDD/SSD) + no M.2 slot.

Interfaces and Expansion:

Video Output: 1× HDMI 1.4, 1× VGA.

USB: 2× USB 3.0 + 1× USB 2.0.

Others: RJ-45 network port, 3.5mm audio combo jack, SD card reader.

Other features:

Wireless network card: Mini PCIe slot reserved (need to install wireless module by yourself).

Repair label: suitable for replacing faulty motherboard (need to ensure compatibility with the original machine casing, screen, etc.).
